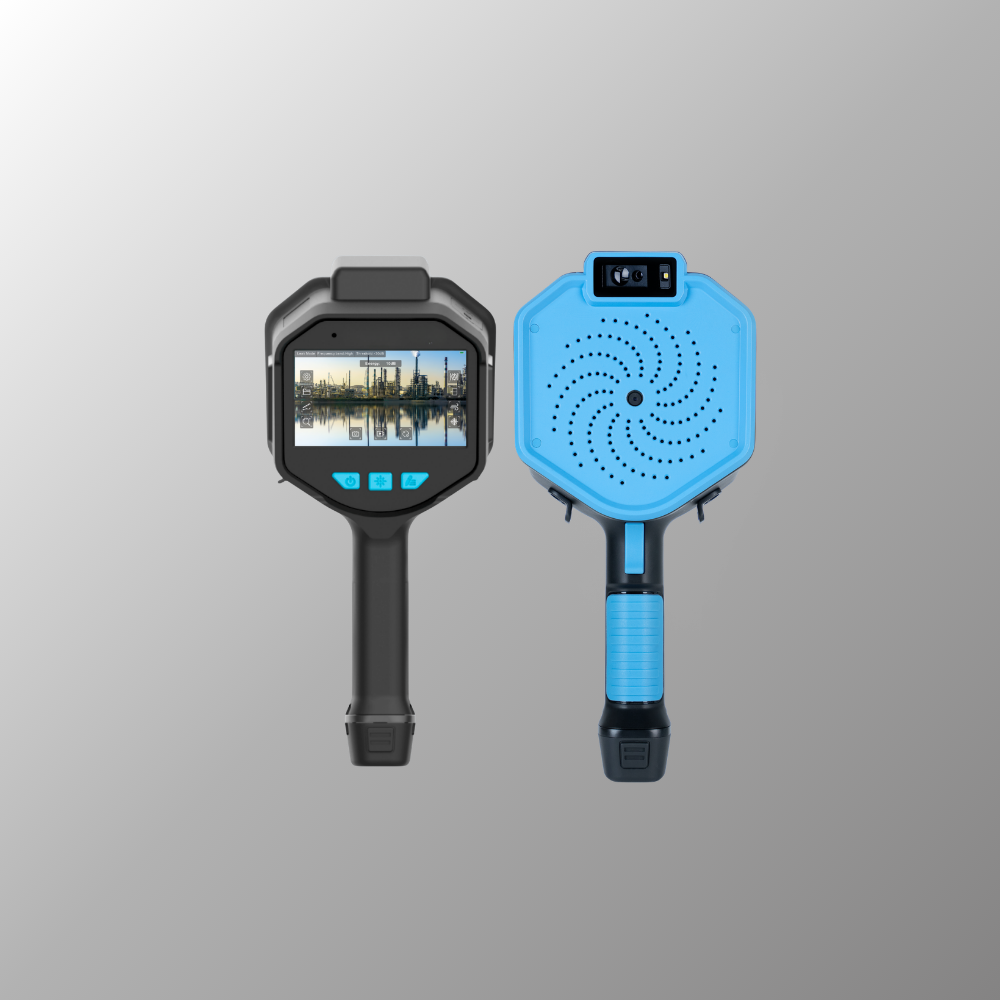

  • HA3 144-channel MEMS microphone array for ultrasonic acoustic imaging

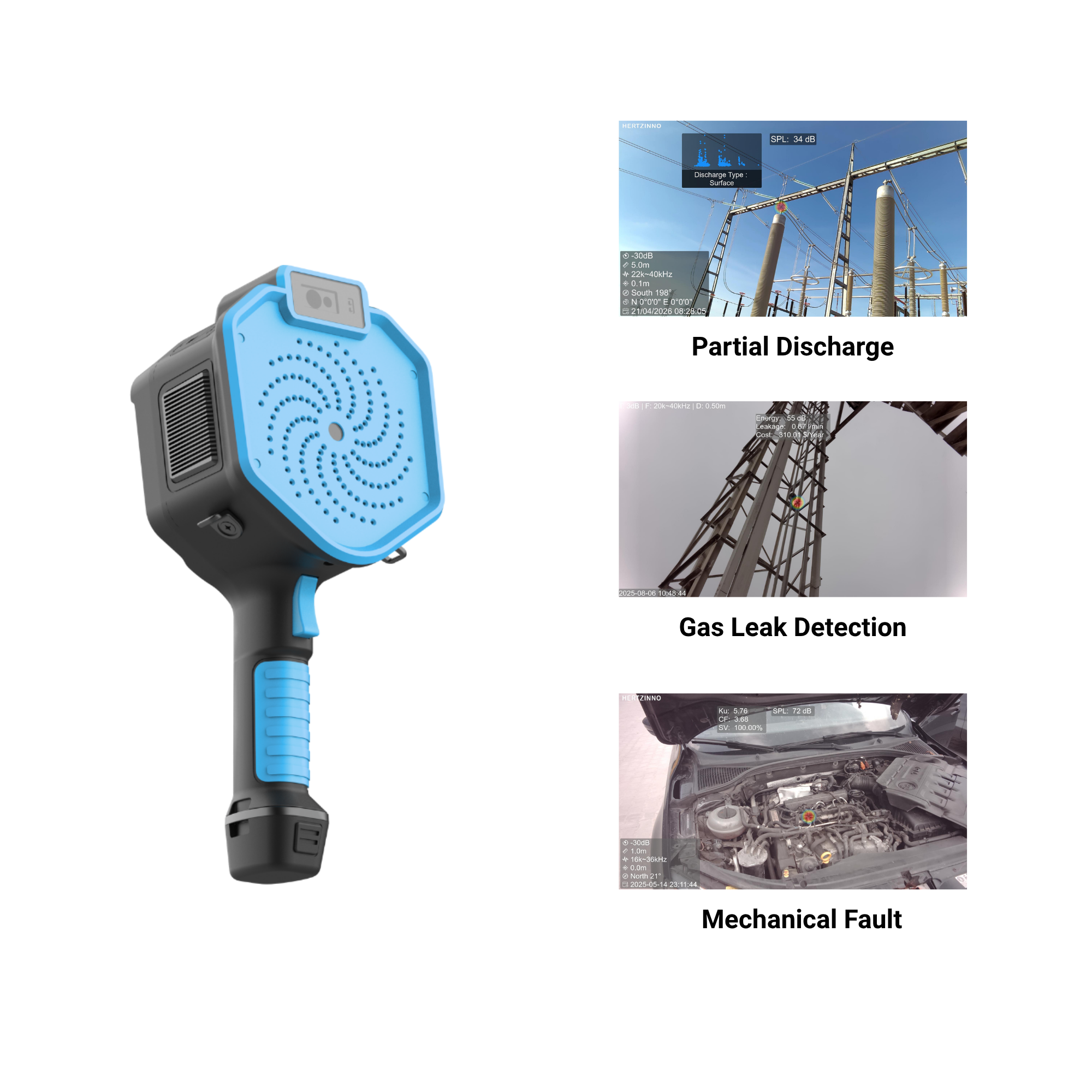

  • HA3 handheld acoustic camera for substation partial discharge inspection

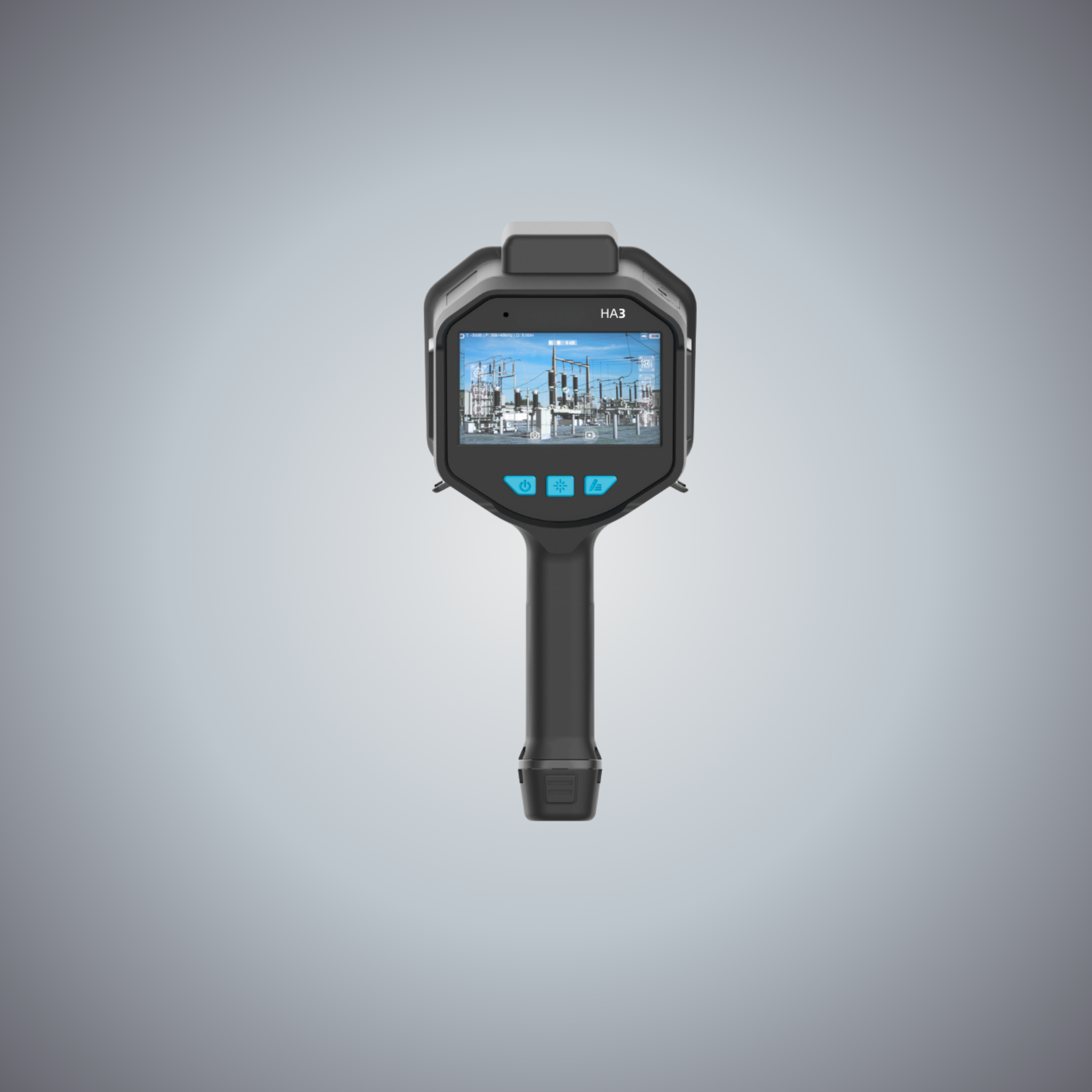

  • 5-inch Touch Screen of HA3 showing Real-time Sound Source Localization and Spectrum Analysis
  • HA3 Handheld Acoustic Camera,HERTZINNO,HA3 Handheld Acoustic Camera for Gas Leak & PD Detection | HERTZINNO
  • HA3 Handheld Acoustic Camera,HERTZINNO,HA3 Handheld Acoustic Camera for Gas Leak & PD Detection | HERTZINNO
  • HA3X- ATEX acoustic camera

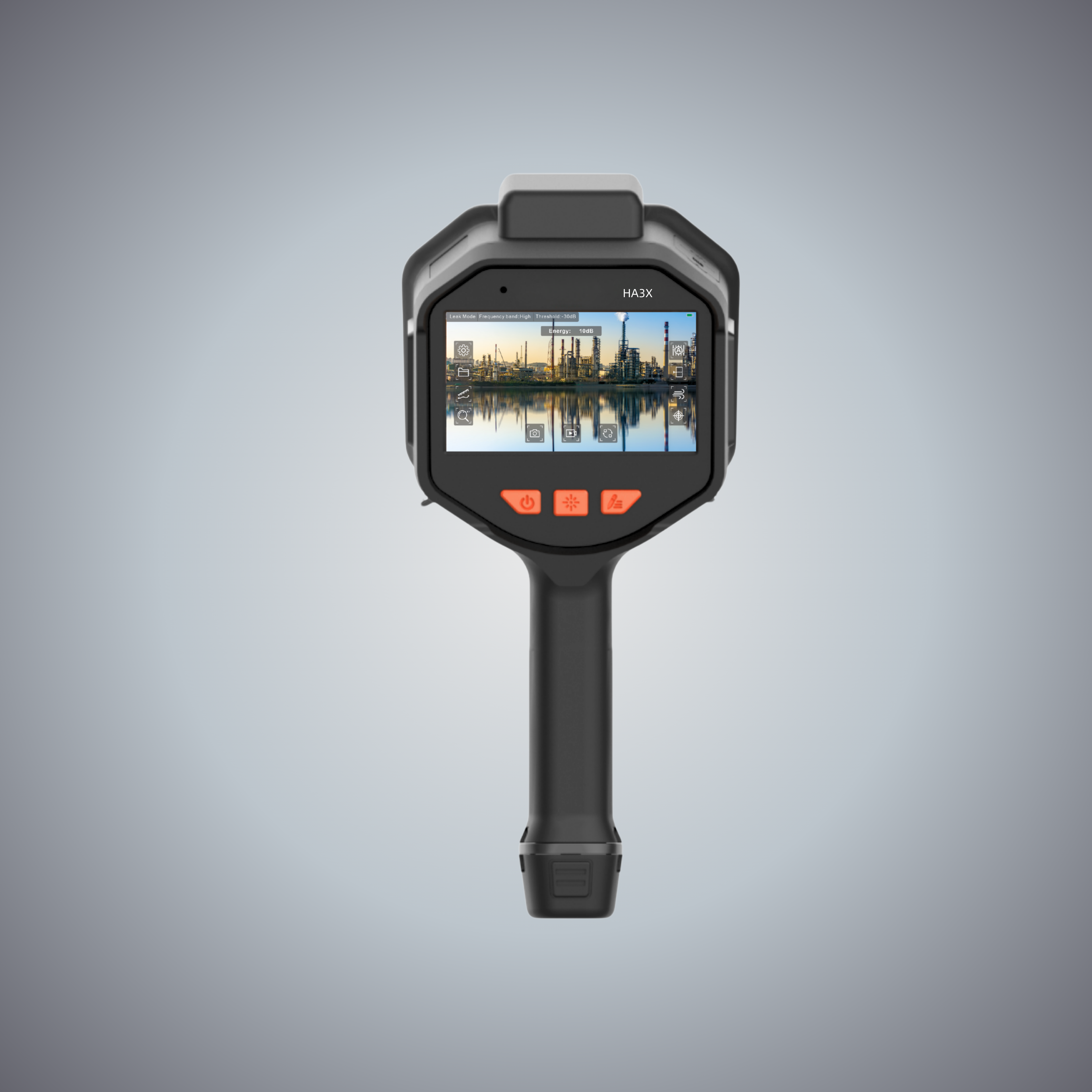

  • HA3X Atex acoustic camera main

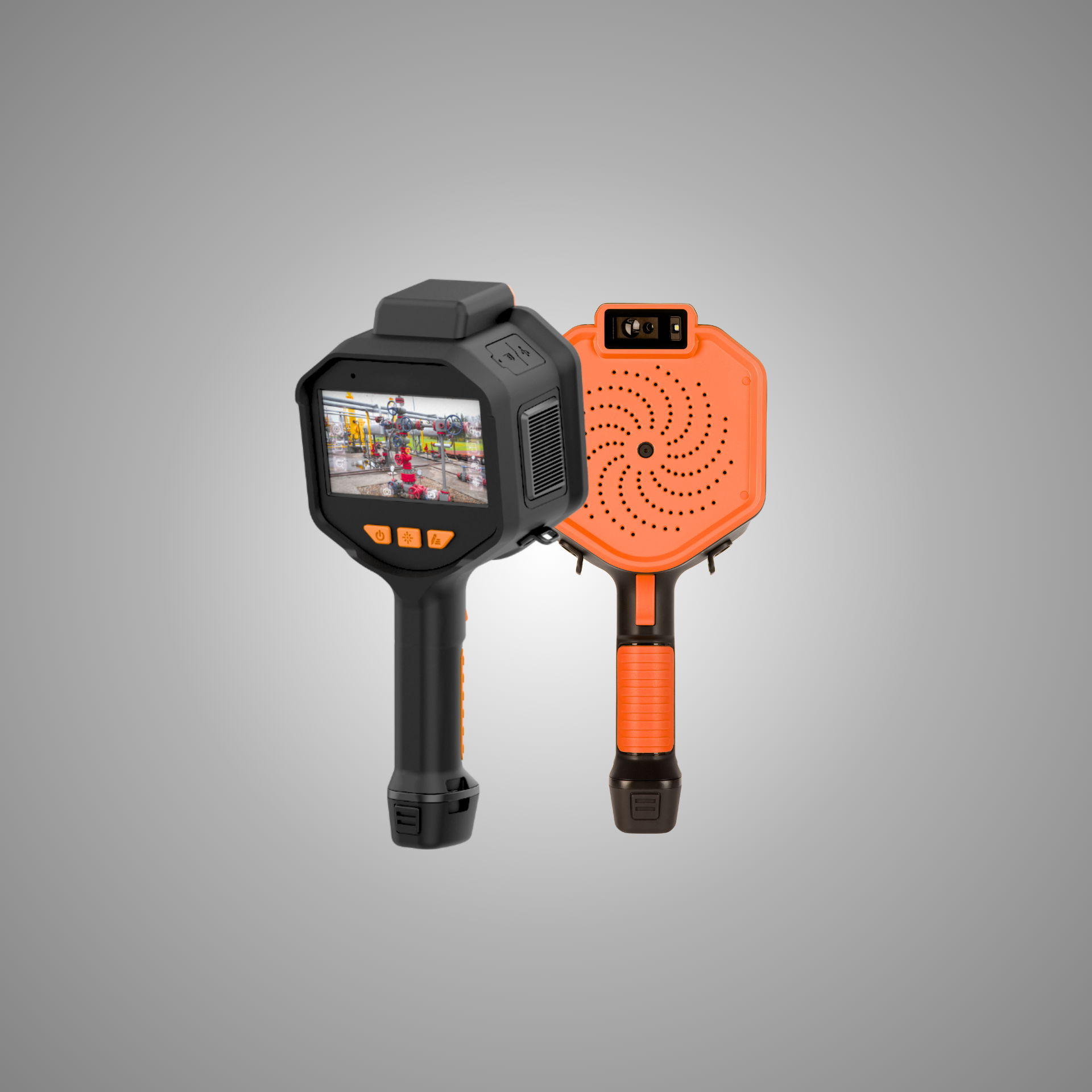

  • HA3X Atex Acoustic Camera

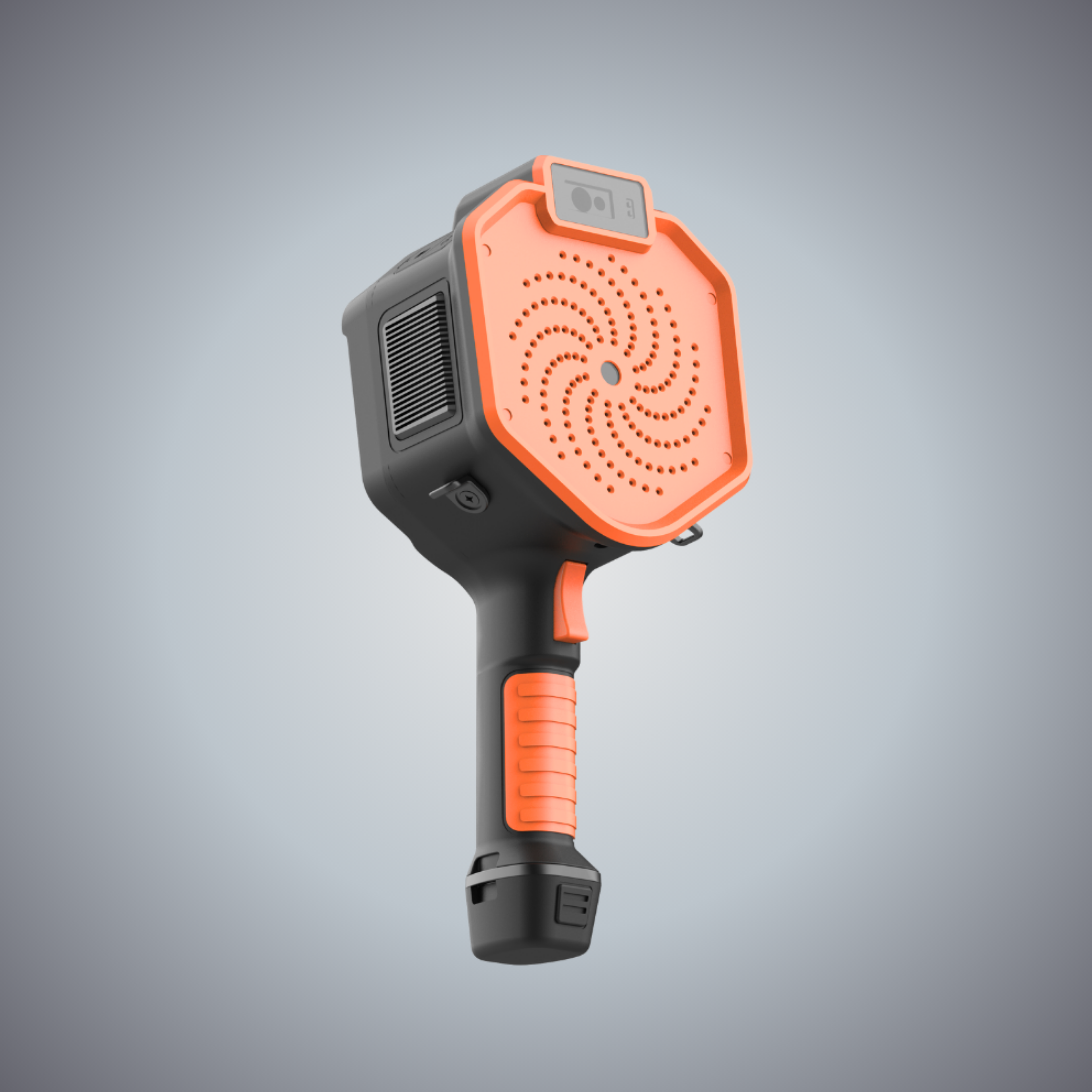

  • ATEX acoustic camera HA3X
  • HA3 144-channel MEMS microphone array for ultrasonic acoustic imaging
  • HA3 handheld acoustic camera for substation partial discharge inspection
  • 5-inch Touch Screen of HA3 showing Real-time Sound Source Localization and Spectrum Analysis
  • HA3 Handheld Acoustic Camera,HERTZINNO,HA3 Handheld Acoustic Camera for Gas Leak & PD Detection | HERTZINNO
  • HA3 Handheld Acoustic Camera,HERTZINNO,HA3 Handheld Acoustic Camera for Gas Leak & PD Detection | HERTZINNO
  • HA3X- ATEX acoustic camera
  • HA3X Atex acoustic camera main
  • HA3X Atex Acoustic Camera
  • ATEX acoustic camera HA3X

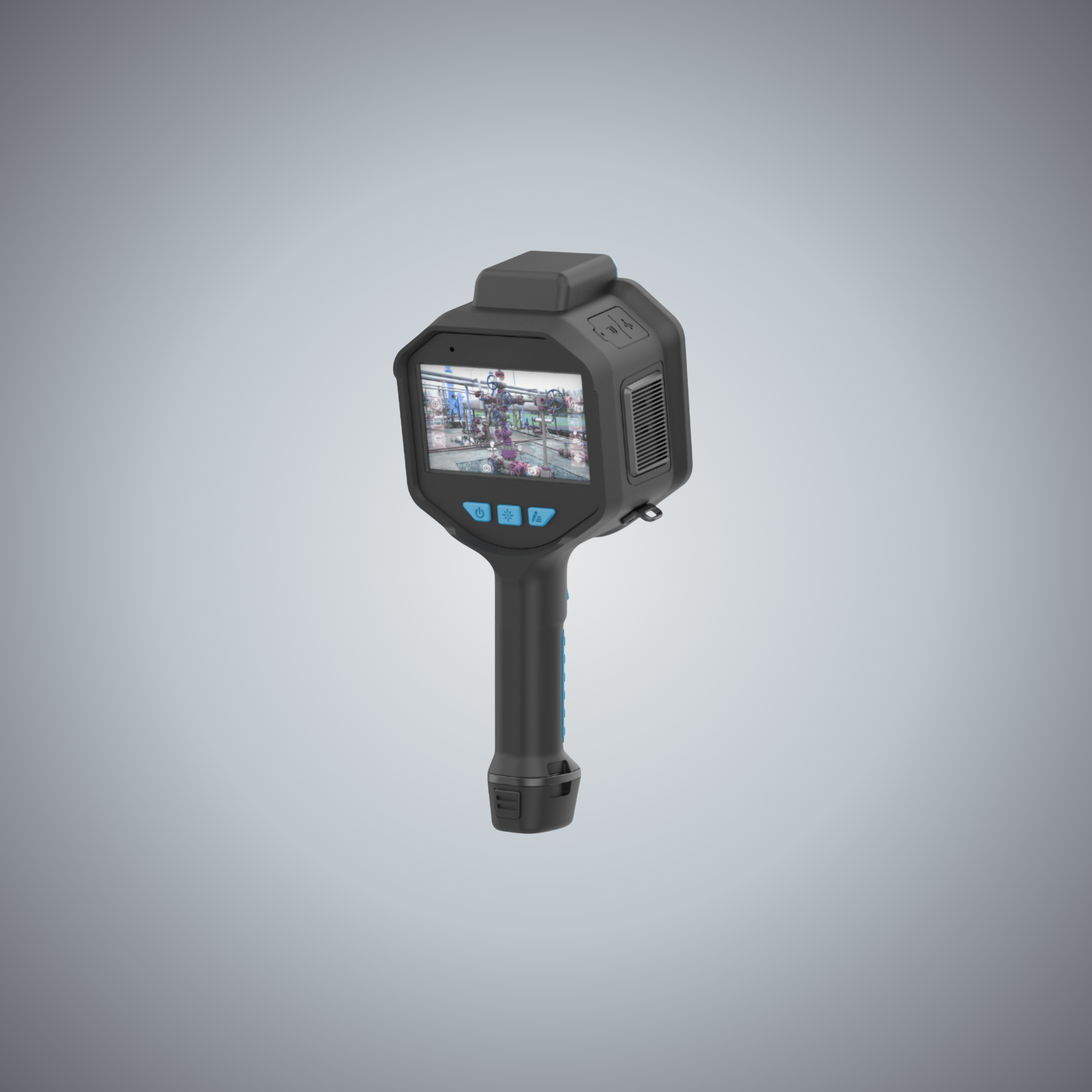

HA3 Handheld Acoustic Camera

HA3 is a 144-MEMS handheld acoustic camera for gas leak localization, partial discharge inspection and mechanical noise detection, with 2kHz–150kHz bandwidth, 0.3–210m operating distance and on-device analysis.

Model
HA3 (X)
Product Type
Handheld Acoustic Camera
Microphones
144 digital MEMS microphones
Frequency Bandwidth
2 – 150 kHz
Operating Distance
0.3 m–210 m
Dynamic Range of Camera
-30 dB–120 dB
Dynamic Range of Multiple Targets
0–18 dB
ATEX
HA3X Model
Anti-Explosion:
NON-ATEX
ATEX
GET A QUOTE
  • HA3 144-channel MEMS microphone array for ultrasonic acoustic imaging
  • HA3 handheld acoustic camera for substation partial discharge inspection
  • 5-inch Touch Screen of HA3 showing Real-time Sound Source Localization and Spectrum Analysis
  • HA3 Handheld Acoustic Camera,HERTZINNO,HA3 Handheld Acoustic Camera for Gas Leak & PD Detection | HERTZINNO
  • HA3 Handheld Acoustic Camera,HERTZINNO,HA3 Handheld Acoustic Camera for Gas Leak & PD Detection | HERTZINNO
  • HA3X- ATEX acoustic camera
  • HA3X Atex acoustic camera main
  • HA3X Atex Acoustic Camera
  • ATEX acoustic camera HA3X

HA3 handheld acoustic camera for field inspection.

HA3 is a handheld acoustic imaging camera designed for industrial inspection. It uses a 144-channel MEMS microphone array and AI beamforming algorithms to visualize ultrasonic sound sources and help engineers locate gas leaks, partial discharge and abnormal mechanical noise. It is suitable for power, oil and gas, manufacturing, data center and heavy industry inspection workflows.

144

Digital MEMS microphones for high-density acoustic imaging.

2kHz–150kHz

Wide frequency bandwidth for audible and ultrasonic inspection.

0.3–210m

Operating distance for close-range and long-distance inspection.

<1kg

Lightweight handheld design for field maintenance teams.
Applications

Where HA3 is used

HA3 is suitable for portable inspection tasks where engineers need to quickly find and document sound-based faults.

Power

Substation & Grid Inspection

Inspect partial discharge, corona and abnormal electrical sound sources in substations, switchgear and power assets.

Oil & Gas

Leak Inspection

Locate pressurized gas leaks, compressed air leaks and abnormal acoustic sources around valves, flanges and process units.

Data Center

Electrical Room Inspection

Inspect electrical cabinets, switchgear, cooling equipment and cable areas for abnormal acoustic sources.

Manufacturing

Plant Maintenance

Detect compressed air leaks, mechanical noise and abnormal sound sources in production and maintenance areas.

Heavy Industry

Equipment Troubleshooting

Inspect motors, fans, pumps, conveyors and rotating machinery in high-noise industrial environments.

Product Family

Acoustic Imaging Cameras

Compare HA3 with HA3T, HA3LX and fixed online acoustic cameras for different inspection workflows.

What HA3 helps engineers detect

HA3 turns invisible sound sources into visible acoustic heatmaps, helping maintenance teams find faults that are difficult to confirm by human hearing, visual inspection or periodic checks alone.
Gas Leak located by Acoustic Camera
Surface discharge on tower
Vibration detected by acoustic camera
Acoustic Camera for Partial discharge detected in substations
Gas Leak located by Acoustic Camera

Gas Leak Localization

Locate pressurized gas and compressed air leaks by visualizing ultrasonic leak emissions on screen.
Surface discharge on tower

Partial Discharge Inspection

Detect corona, tracking(surface & floating) and partial discharge sound sources in substations, switchgear and electrical assets.
Vibration detected by acoustic camera

Mechanical Fault Diagnosis

Identify abnormal sound from motors, bearings, pumps, fans and rotating equipment during field inspection.
Acoustic Camera for Partial discharge detected in substations

On-device Analysis

Process acoustic images and inspection data directly on the device for fast field decision-making.

From ultrasonic sound to visual inspection evidence.

HA3 series acoustic camera combines a high-density MEMS microphone array, beamforming algorithms and optical image overlay. The camera captures sound arrival differences, calculates the sound source direction and displays the result as an acoustic heatmap over the visual image.
HOW IT WORKS

01

Sound Capture
144 digital MEMS microphones capture audible and ultrasonic sound signals from the target area.

02

Beamforming
AI beamforming algorithms suppress background noise and focus on target sound sources.

03

Visual Overlay
Acoustic heatmaps are displayed over HD optical images for intuitive source localization.

04

Inspection Output
Engineers can capture images, videos, annotations and inspection records for maintenance reporting.
Technical Specifications

Core HA3 specifications

Key parameters from the HA3 product specification for inspection range, acoustic performance, imaging, storage, power and field operation.

Microphone Array
144 digital MEMS microphones
Frequency Bandwidth
2 kHz – 150 kHz
Localization Accuracy
±1°; space resolution ≤1 cm @ 1 m, 40 kHz
Operating Distance
0.3 m – 210 m
Detection Applications
Partial discharge detection, gas leakage localization and mechanical noise detection
Optical Camera
13 MP; 72°±3° FOV; 4K photo image resolution
Display
5-inch touch screen, 1920×1080P display resolution
Storage & Data
128 GB storage; USB, Wi-Fi and Bluetooth data transmission
Battery
Two rechargeable Li-ion batteries; 3.5h Normal mode, 7h Standby mode
Protection & Environment
IP54; working temperature -20°C to 55°C; weight less than 1 kg

Download

Choose the right HA3 series model
HA3 is the general handheld acoustic camera. Choose another model when your workflow requires thermal imaging, methane verification or online fixed monitoring.
HERTZINNO

HA3LX

 Acoustic and TDLAS
Gas Leak Detection
Methane Concentration Measurement
ATEX Proof
HERTZINNO

HA3T

 Acoustic and Thermal Lens
Partial Discharge Detection
PRPD Graph with AI
Temperature Measurement
HERTZINNO

FA371T

 Acoustic & Thermal
PD & Gas Leak Detection
7*24 Monitoring
ATEX Proof

HA3 Acoustic Camera FAQ
why hertzinno acoustic camera with high performance

What is HA3 used for?

HA3 is used for handheld acoustic inspection, including gas leak localization, partial discharge detection,compressed air leak detection and mechanical fault inspection in industrial environments.

What makes HA3 different from a standard ultrasonic detector?

HA3 uses a 144-channel microphone array to visualize sound sources as an acoustic heatmap,
helping engineers see the location of leaks or discharge rather than only hearing a signal.

Can HA3 detect partial discharge?

Yes. HA3 is designed for partial discharge inspection and can help locate corona, tracking and discharge-related ultrasonic sound sources in substations, switchgear and electrical assets.

Can HA3 be used for a full inspection shift?

HA3 uses rechargeable Li-ion batteries and supports battery replacement. The product specification lists a 3.5-hour battery life per charge cycle, supporting extended field inspection workflows.

What is the difference between HA3 and HA3LX?

HA3 is designed for general acoustic inspection. HA3LX adds methane laser detection capability for oil, gas and chemical environments where methane verification is required.
HERTZINNO

Need help choosing the right acoustic camera?

Tell us your inspection target, working distance, environment and fault type. HERTZINNO will help you choose the right HA3 series model and inspection workflow.
